Simpson Strong L L-Shaped Angle

Simpson Strong-Tie

$5.99
Unit price per

Options

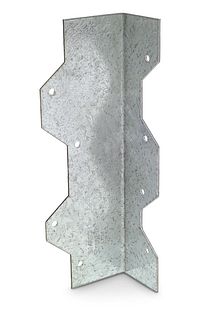

The L angle is a general utility-reinforcing connector with multiple uses. The durable design and fastening options of these load-rated skewable angles make them an ideal option compared to field-fabricated clip angles. The L angle has well-defined fastener locations, and testing ensures that the tabulated load values account for connection eccentricities.

Key Features

Staggered nail pattern reduces the possibility for splitting
Available in multiple sizes to ensure proper selection for the specific use
Load rated for wood and cold-formed steel applications

Material

54 mil (16 ga.)

Finish

Galvanized (G90)

Installation

Use all specified fasteners; see General Notes
Nail the L angle’s wider leg into the joist to ensure table loads and allow correct nailing


Model No.	Thickness (mil)	Ga.	L (in.)	Coating/Material	Packaging Qty.
L30	54	16	3	Zinc Galvanized, G90	1
L50	54	16	5	Zinc Galvanized, G90	1
L50Z	54	16	5	ZMAX^®	1
L70	54	16	7	Zinc Galvanized, G90	1
L70Z	54	16	7	ZMAX^®	1
L90	54	16	9	Zinc Galvanized, G90	1
L90Z	54	16	9	ZMAX^®	1
