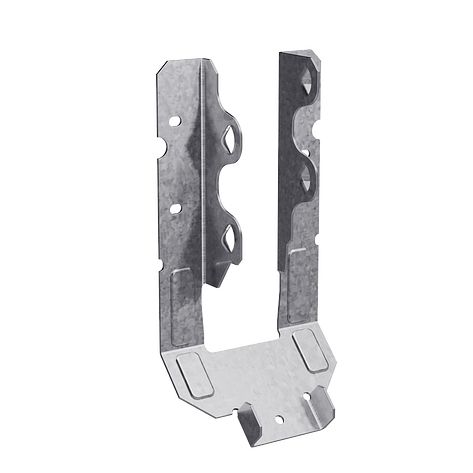

Simpson Strong Tie LRUZ Face-Mount Rafter Hanger

Simpson Strong-Tie

$7.29
Unit price per

Options

The LRUZ offers an economic alternative for those applications requiring a sloped hanger for rafter-to-ridge connections. Used with solid sawn rafters, the LRUZ’s unique design enables the hanger to be installed either before or after the rafter is in place. The field-adjustable seat helps improve job efficiency by eliminating mismatched angles in the field and lead times associated with special orders. The LRUZ offers comparable or better load capacity to other rafter hangers at a reduced cost while using fewer fasteners.

Key Features

The open design and ability to field-adjust the slope make the LRUZ ideal for both retrofit or new applications.
May be sloped down from 0° (0:12 pitch) to 49° (14:12). For slopes greater than 45°, allowable downloads are 0.85 of table loads.
May be sloped up from 0° to 45°.
For added versatility, the fasteners on the face of the hanger are placed high, enabling the bottom of the rafter to hang below the ridge beam (see “Max. C₁” dimension in Standard Installation table).
Can be installed using nails or Strong-Drive^® SD Connector screws.

Material

18 gauge

Finish

ZMAX^® coating (G-185); see Corrosion Information

Installation

Use all specified fasteners; see General Notes
Joist fasteners must be installed at an angle through the rafter or joist into the header to achieve the table loads
See Alternate Installation table for retrofit applications

Patent Information

US Patent 10,370,842
